Incel battery tester, 12 volt

[Smucky]

Just bought

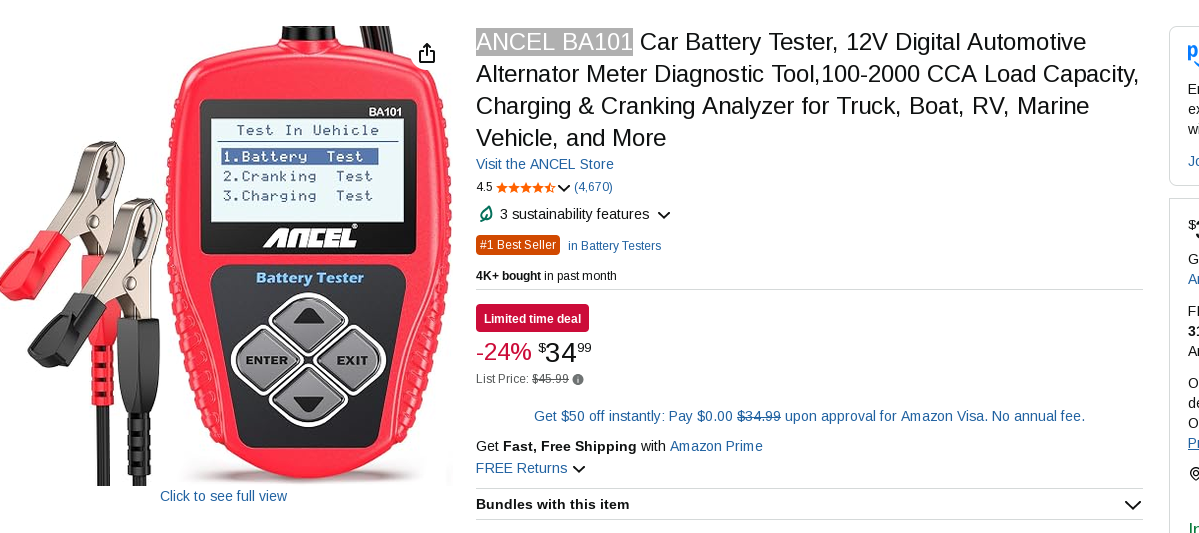

Ancel BA101

[Smucky]

Got in the mail the other day and I have tested every 12 volt battery around here I could find

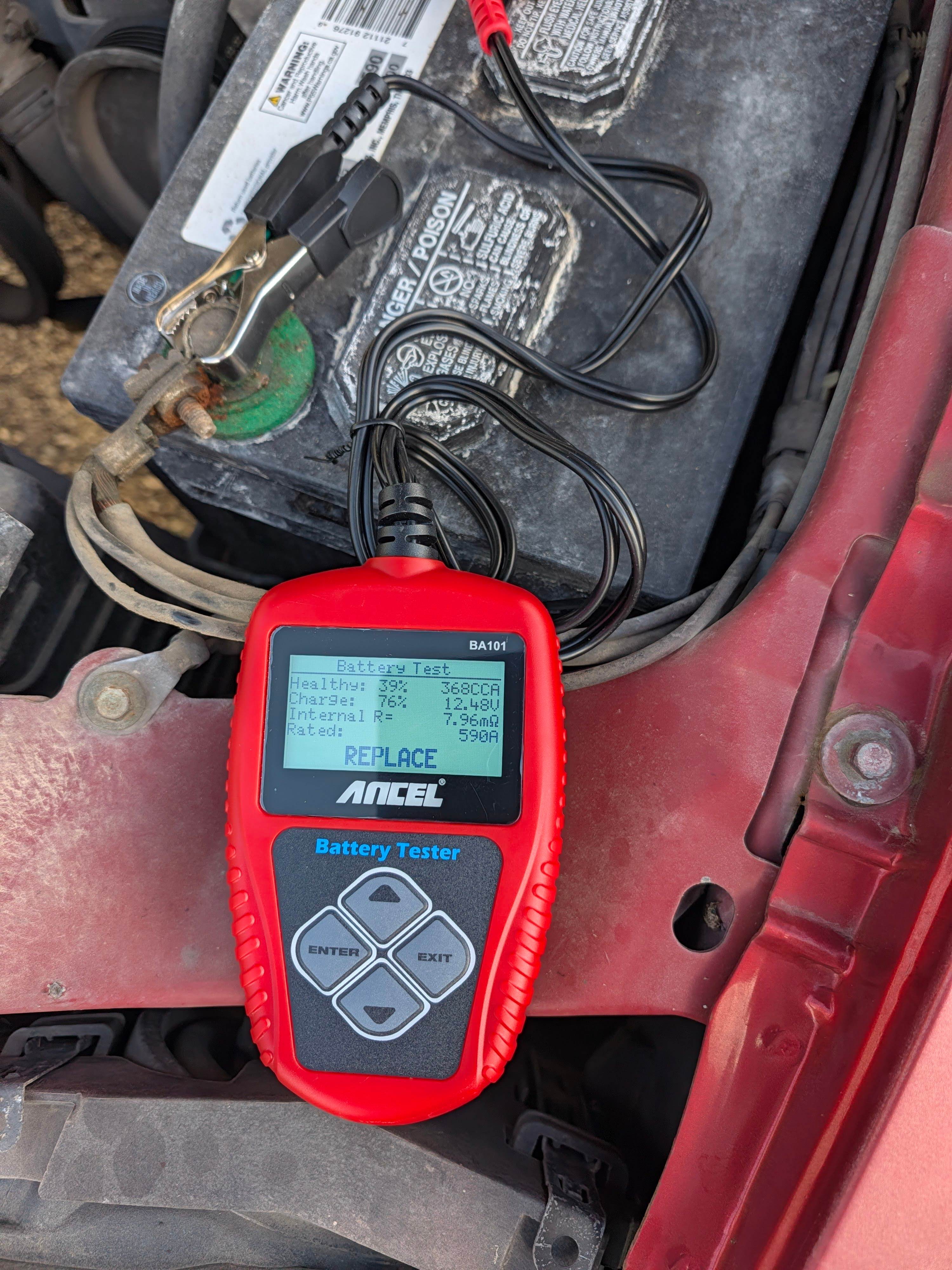

First up, car #1:

Health: 39%
Charge: 76%
Impedance: 7.96

This was the reason I bought the tester. Back in the day, getting the duralast GOLD from autozone was top of the line, would last 6 years and cost around $95. And then it was $125. And then it was $180. And then $220. A few months ago it was $240. The warranty went from 5 years to just three. And the last batch only came with a three year warranty In fact the battery above is a duralast gold from 2022 and is in a car that only drives about 1000 miles a year. I'm not sure at what point the battery will stop starting the car/completely fail, but I doubt this one will make it to the 6 year mark. And ain't no way I'm paying $200+ when I know the crap at Tractor Supply will make it 3-4 years and only cost $150

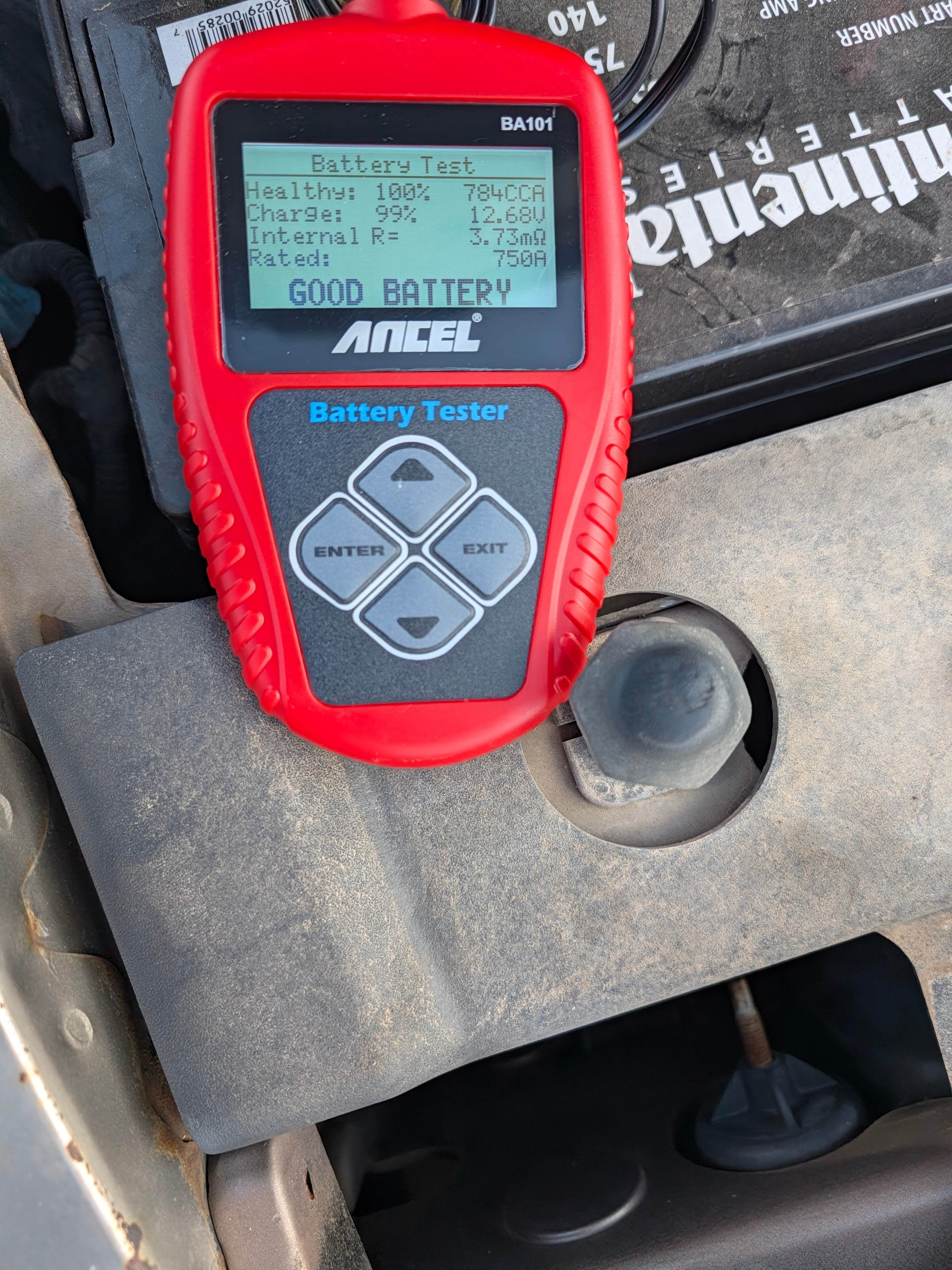

Next up, car #2:

Health: 100%
Charge: 99%
Impedance: 3.73

This is a new battery, "Continental". Bought from local hardware store for $150. The plan was to put the old one in the old tractor.

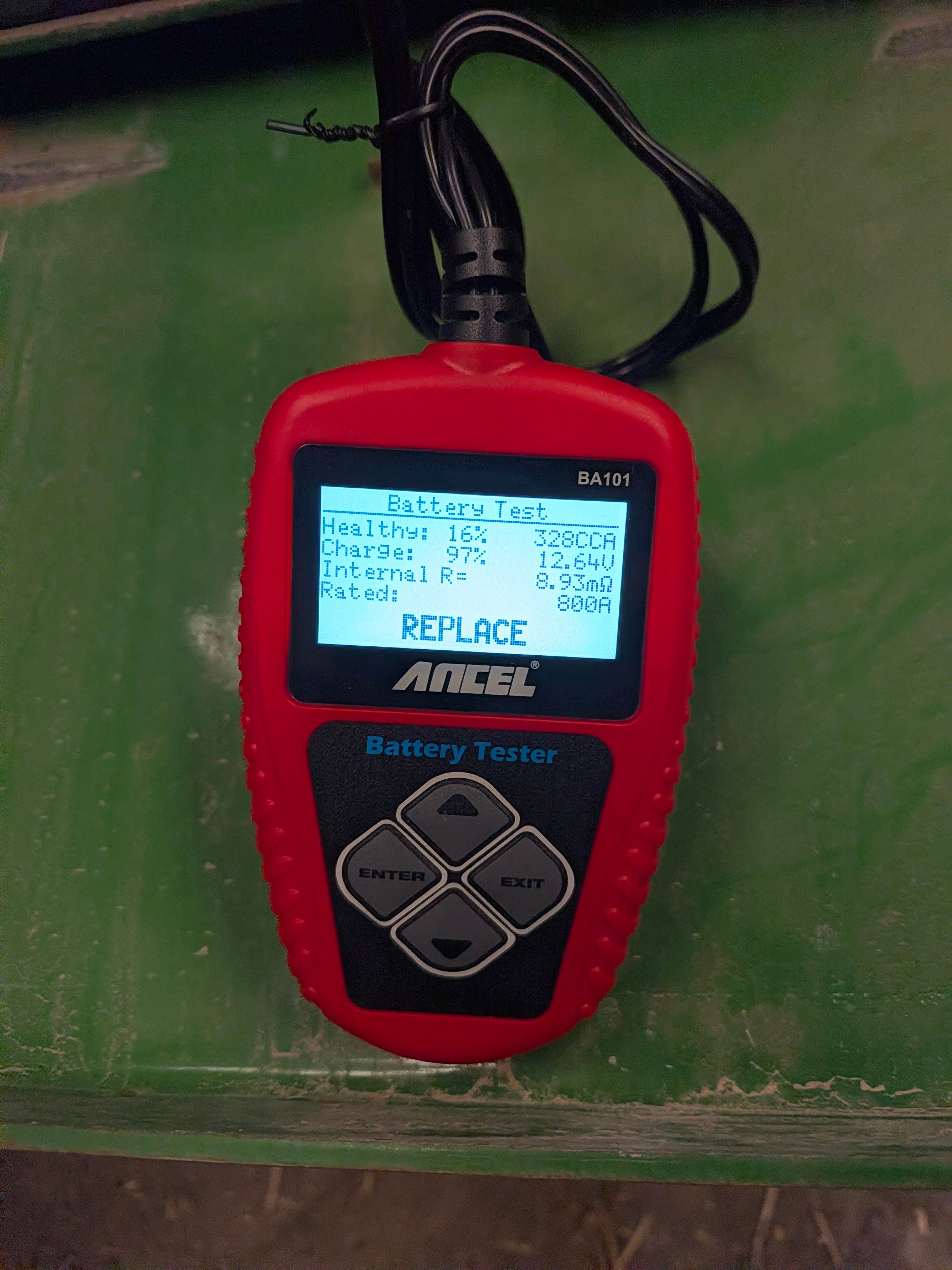

Next up, new tractor with old mystery battery:

Health: 16%
Charge: 97%
Impedance: 8.93

No clue about this one, branded "Exide". Not sure if it is john deere original equipment, but I doubt it. Can't find a date on it, but didn't look too hard. Currently struggles to start the tractor.

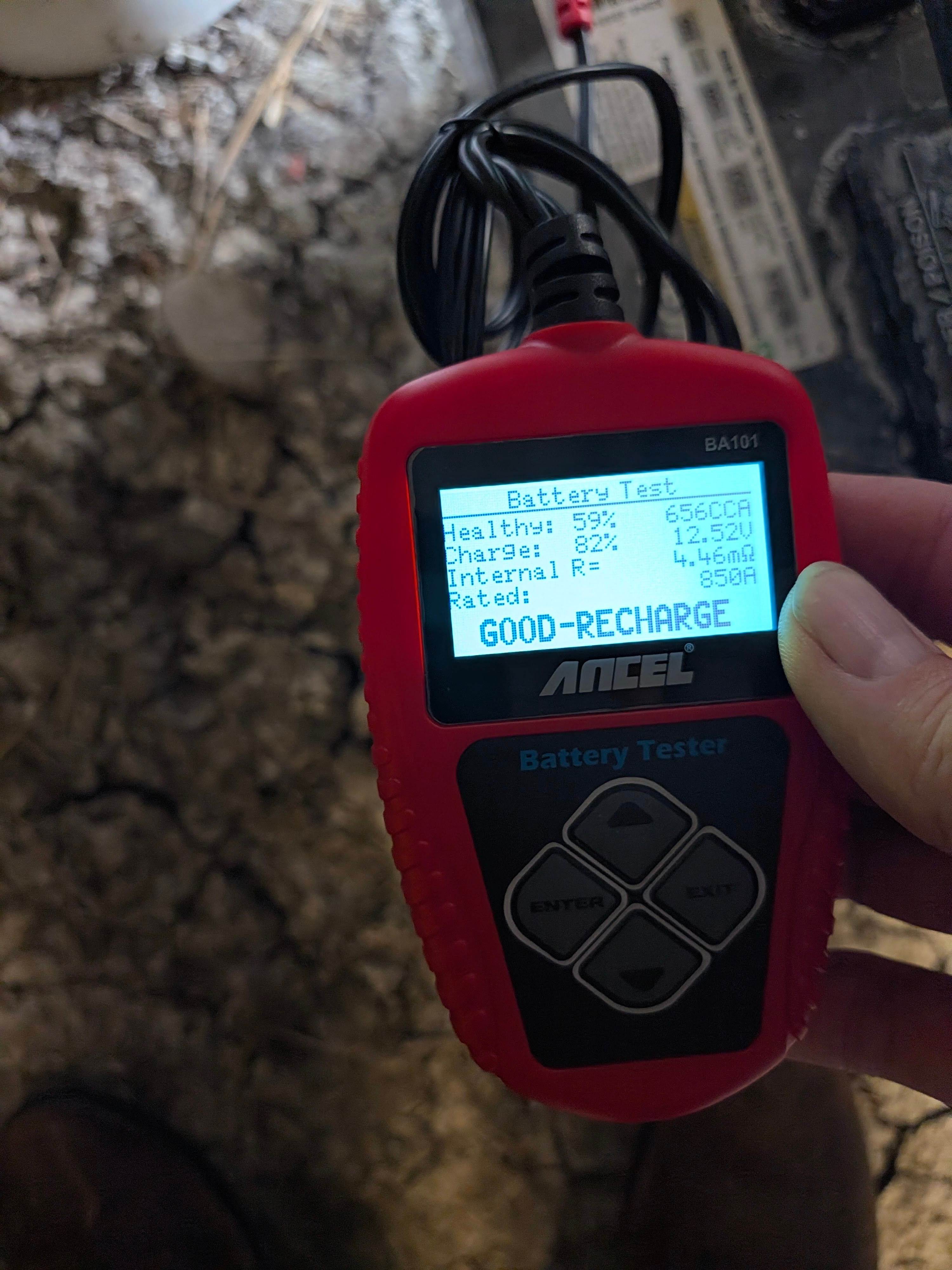

Next up, the old car #2 battery:

Health: 59%
Charge: 82%
Impedance: 4.46

This was the battery from car #2, plan was to put it in the old tractor, but it would not turn over the tractor at all. It is also a duralast GOLD from 2022 I believe, so similar to car #1 above, but this car is driven about 3000 miles a year.
Not sure why it would not turn over the tractor. I tried charging it on a fancy digital charger but it refused and only showed the "sulfated" error message. That was a few weeks ago. Yet the tester says it is in great shape I put it back on the charger and now it is charging Maybe was just a bad connection?

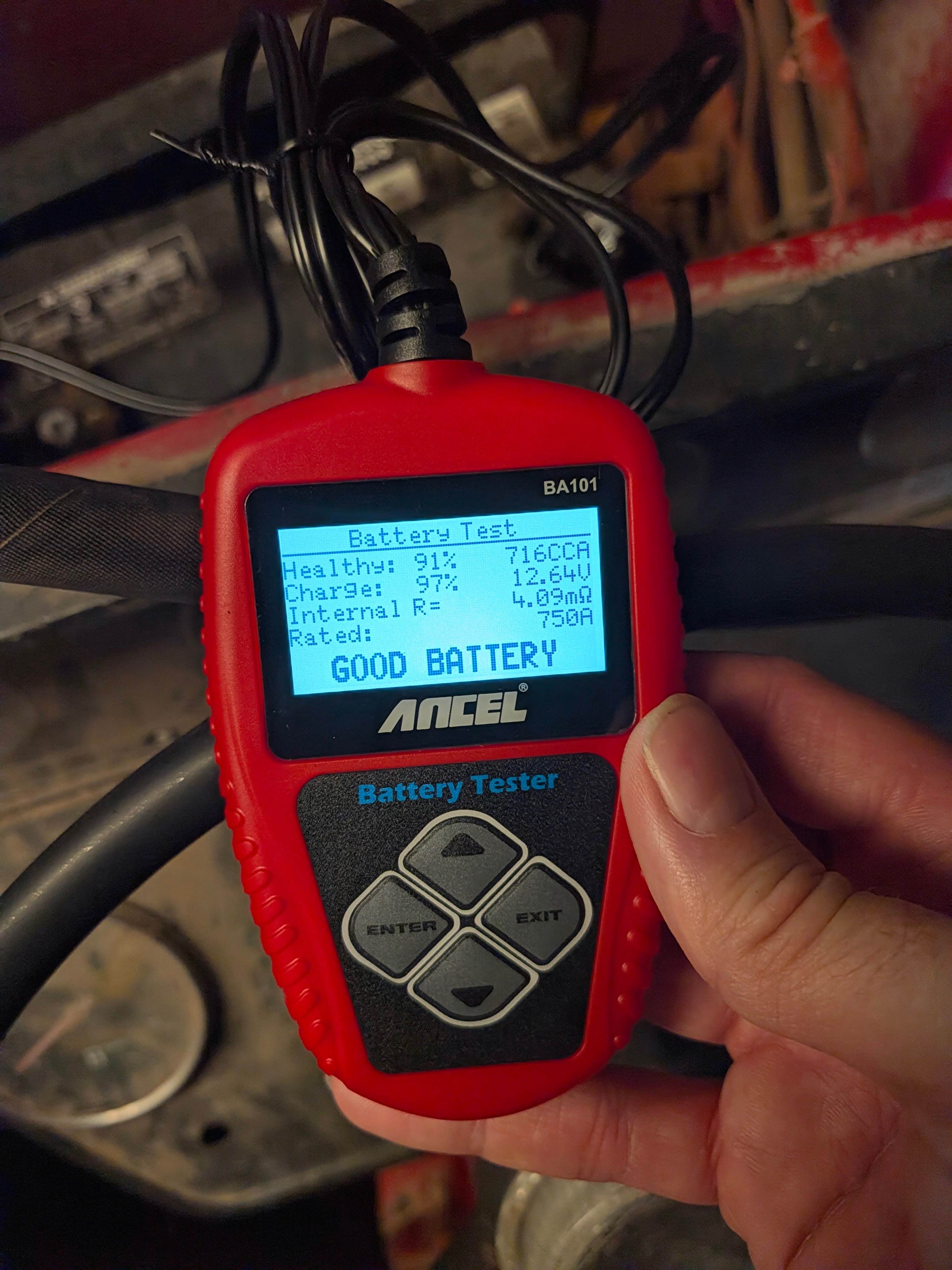

Next up, truck battery but it is actually in the old tractor:

Health: 91%
Charge: 97%
Impedance: 4.09

This one is currently in the old tractor since the old one from car #2 wouldn't turn it over. So typically it is in the farm truck that is only started like 4 or 5 times a year and only driven less than 200 miles a year (typically). A "Continental" dated 2022. This one is confusing, not sure how it could be in that good of shape for four years old

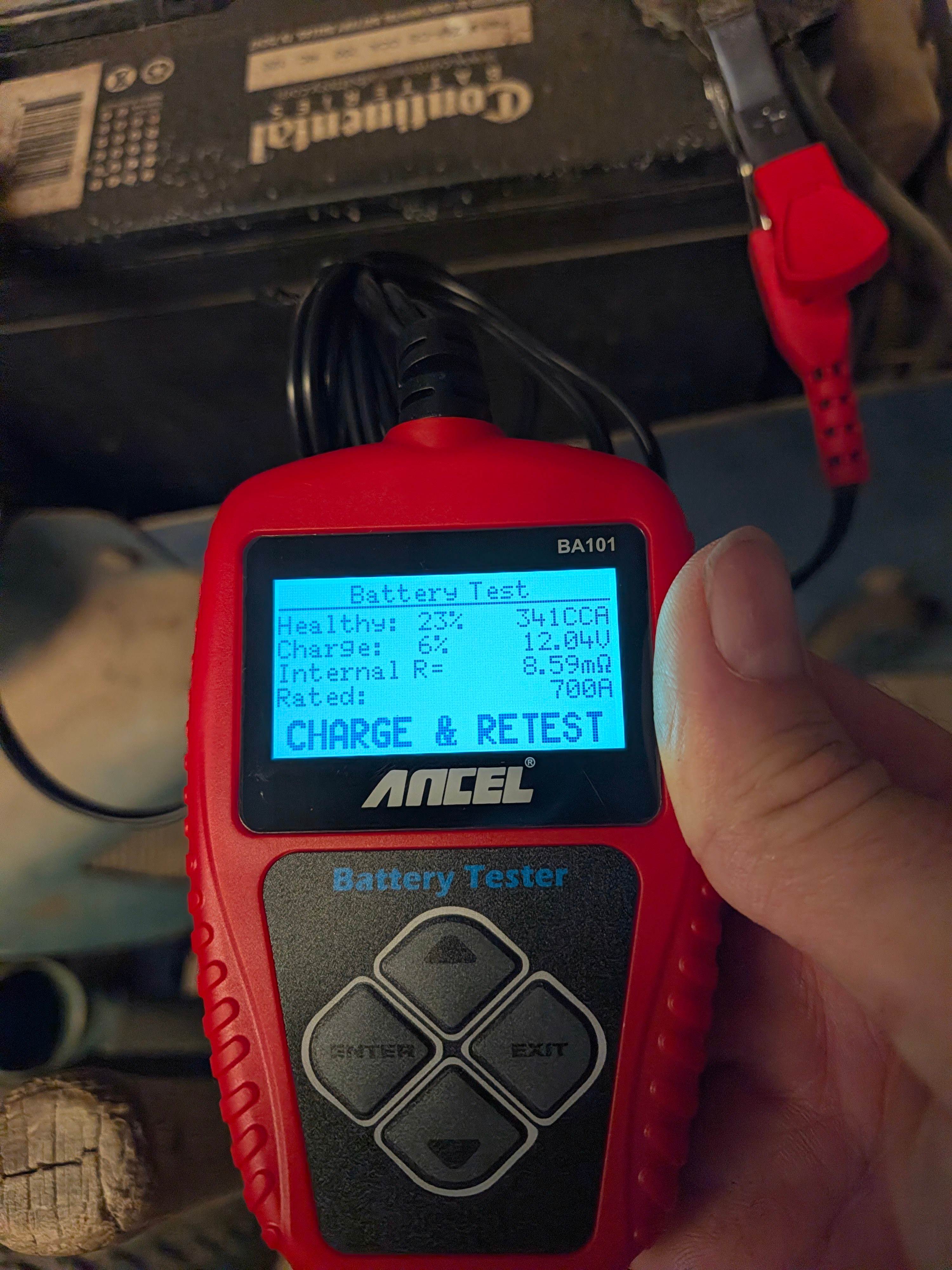

Next up, super old battery in old john deere lawn mower:

Health: 23%
Charge: 6%
Impedance: 8.59

Did this one just for fun. Also a "Continental", but not sure on the date. I remember putting the battery in this mower, and I also remember parking the mower in 2022 and not touching it since. So must be a battery from 2020 or 2021
Maybe I'll put it on the charger tomorrow

[infowar]

Mine goes crazy on lithium batteries. I got a kingbolen off the bay.


The cca and health % does not line up with real world use

[Smucky]

Health: 59%
Charge: 82%
Impedance: 4.46

This was the battery from car #2, plan was to put it in the old tractor, but it would not turn over the tractor at all. It is also a duralast GOLD from 2022 I believe, so similar to car #1 above, but this car is driven about 3000 miles a year.
Not sure why it would not turn over the tractor. I tried charging it on a fancy digital charger but it refused and only showed the "sulfated" error message. That was a few weeks ago. Yet the tester says it is in great shape I put it back on the charger and now it is charging Maybe was just a bad connection?

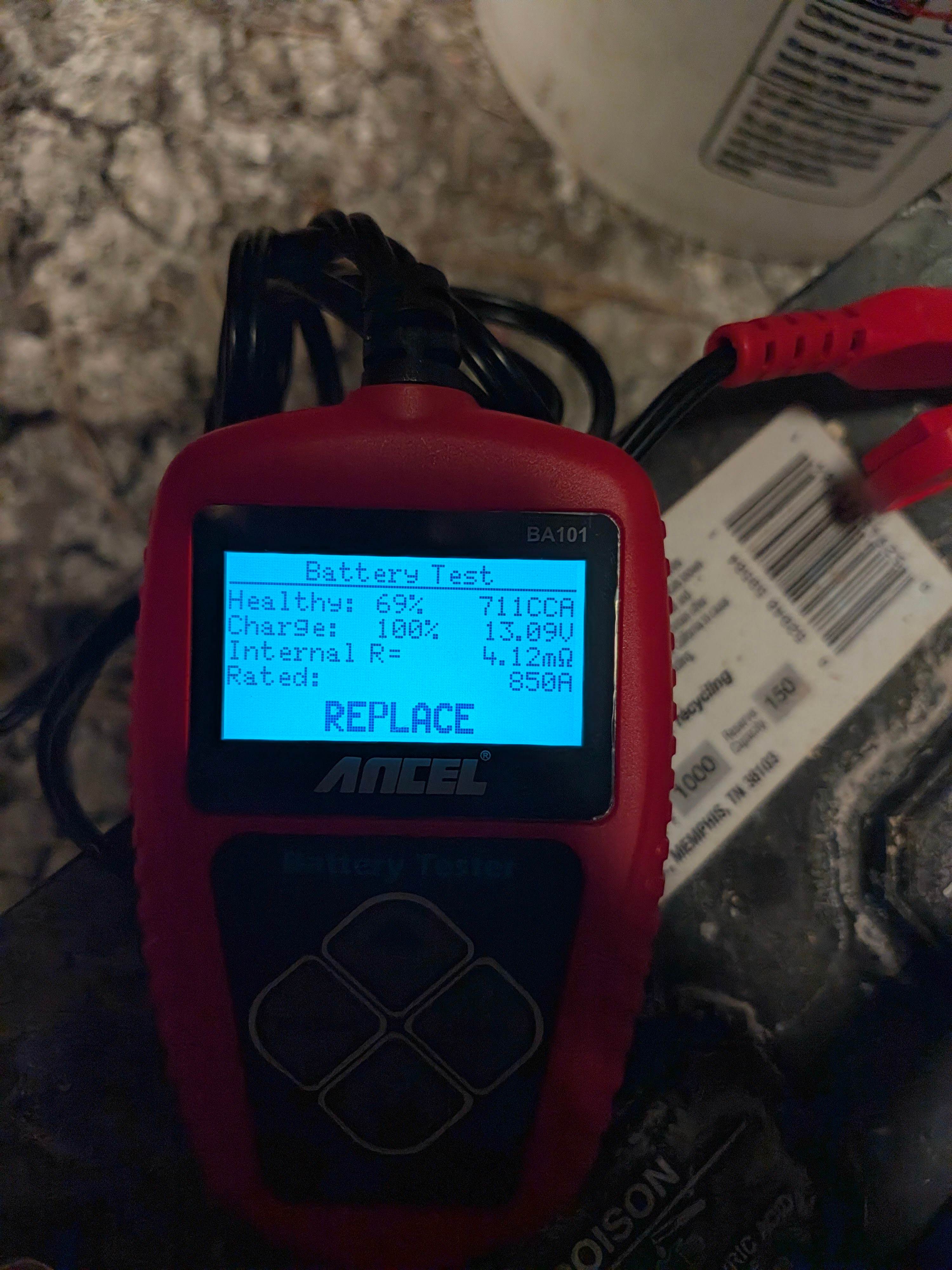

Hmm charged over night and now reads

Health: 69%
Charge: 100%
Impedance: 4.12

But also says "replace"

[NinjaPoodle]

It says on the screen that you need to replace the battery tester.

[Smucky]

Health: 59%
Charge: 82%
Impedance: 4.46

This was the battery from car #2, plan was to put it in the old tractor, but it would not turn over the tractor at all. It is also a duralast GOLD from 2022 I believe, so similar to car #1 above, but this car is driven about 3000 miles a year.
Not sure why it would not turn over the tractor. I tried charging it on a fancy digital charger but it refused and only showed the "sulfated" error message. That was a few weeks ago. Yet the tester says it is in great shape I put it back on the charger and now it is charging Maybe was just a bad connection?

Hmm charged over night and now reads

Health: 69%
Charge: 100%
Impedance: 4.12

But also says "replace"

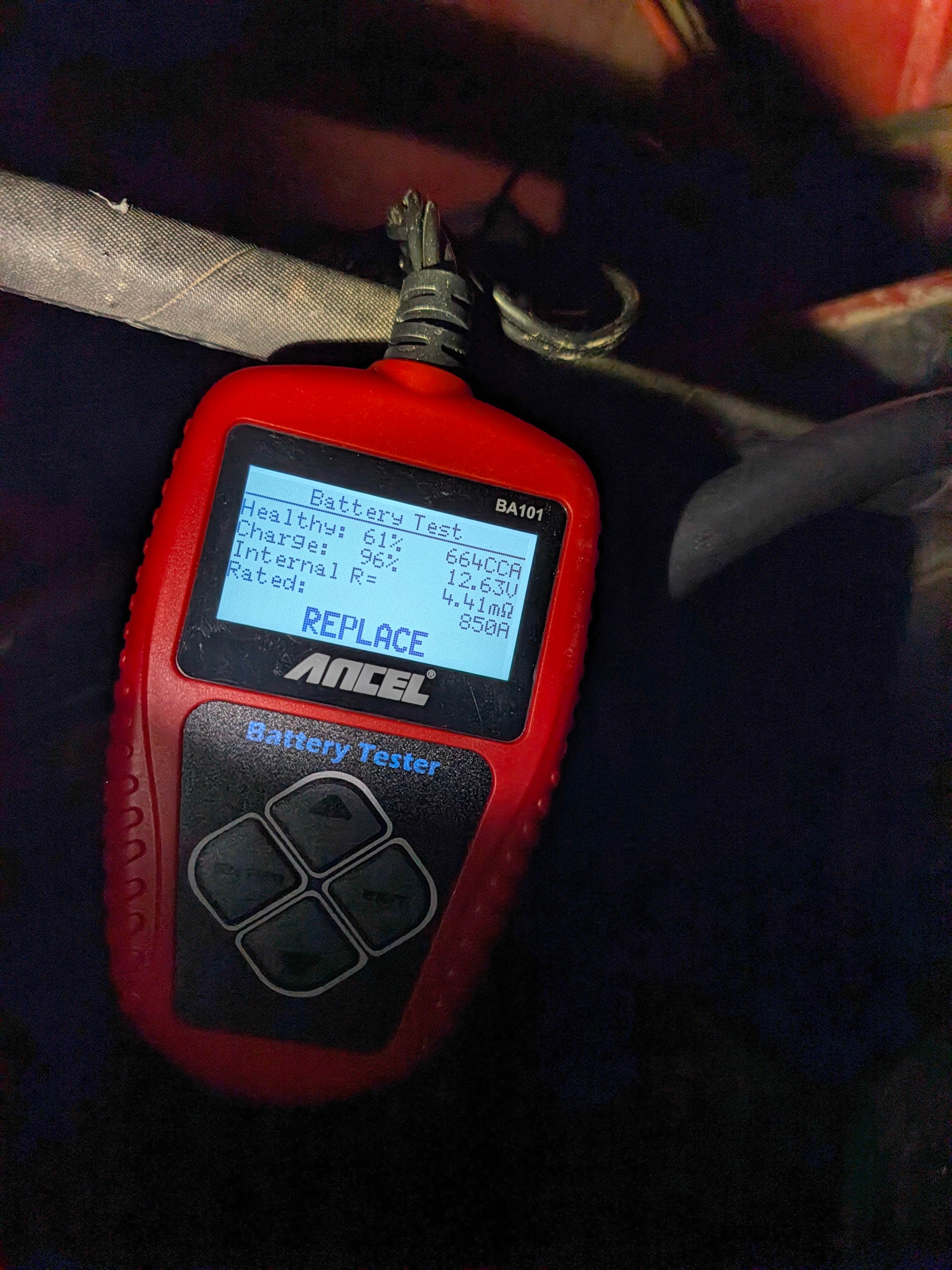

Put this battery (old battery from car #2) in the old tractor and it actually started it fine. I guess the first time there was too much crap on the connections or something

Now reading


Health: 61%
Charge: 96%
Impedance: 4.41

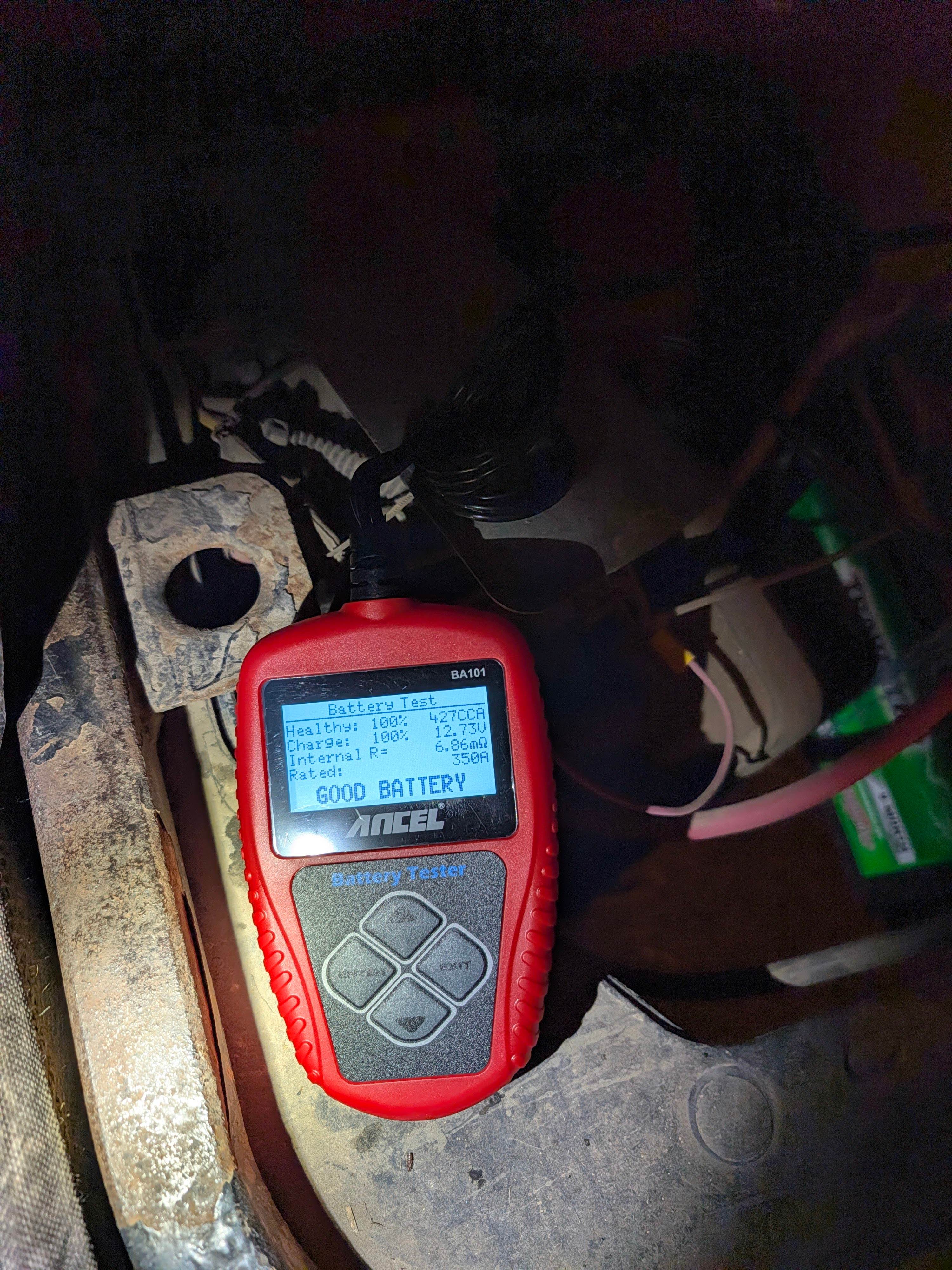

And the new battery I put in the polaris back in July, (duralast gold):

Health: 100%
Charge: 100%
Impedance: 6.86

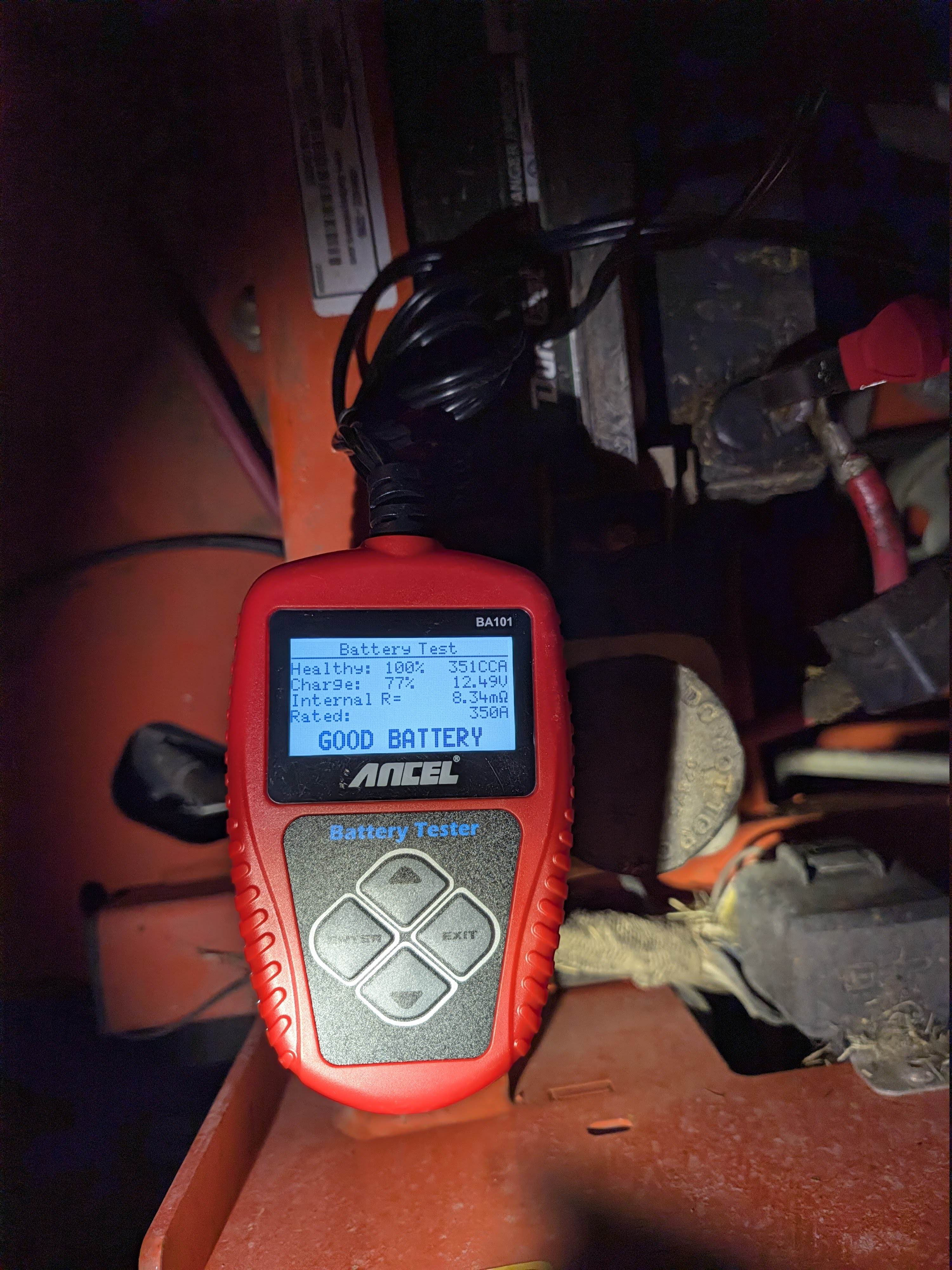

And a new battery put in lawn mower also back in July (Continental):

Health: 100%
Charge: 77%
Impedance: 8.34

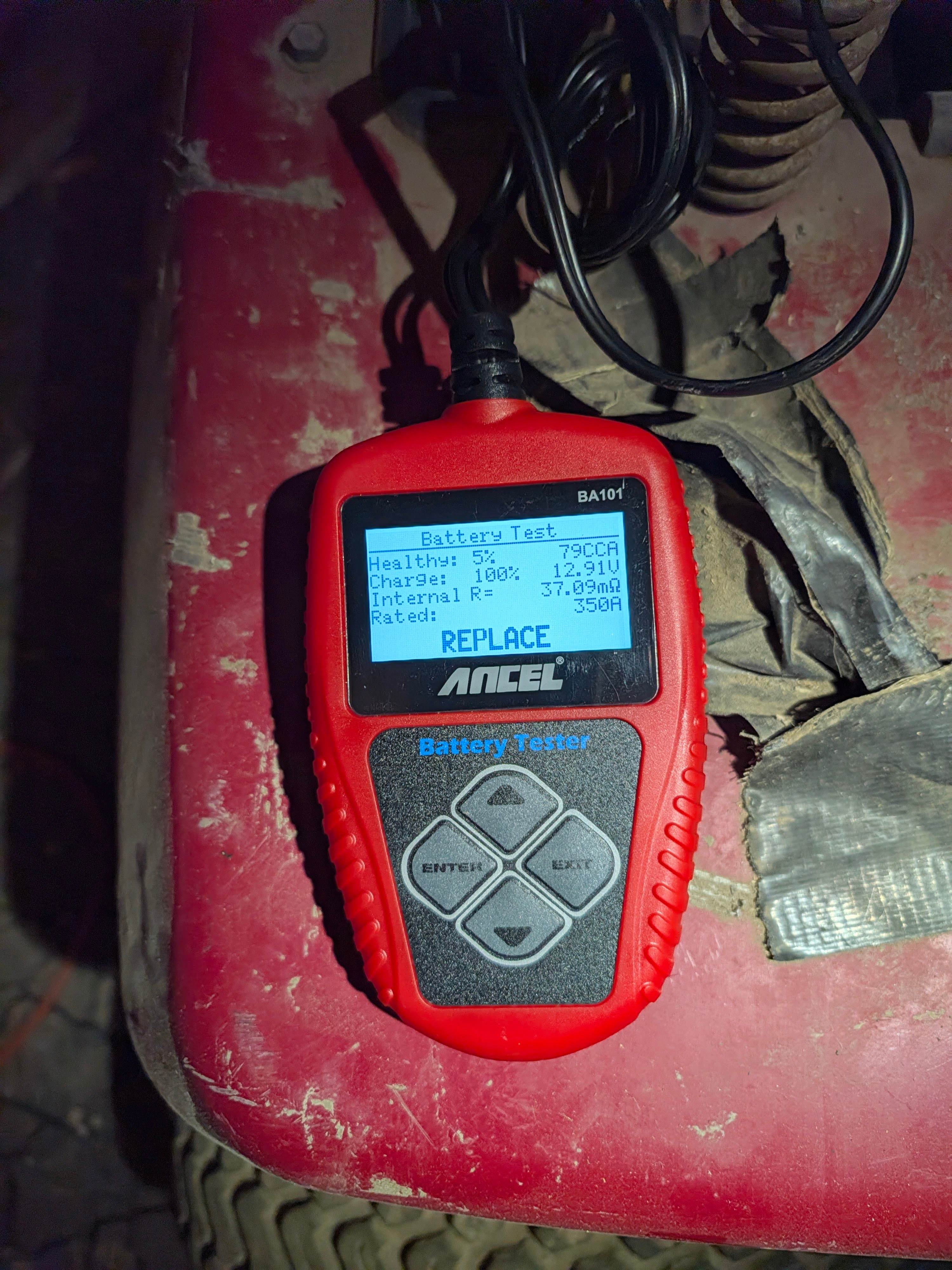

And super old battery (duralast gold) in crappy unused lawn mower from year 2020 or so. Although I did just charge it:

Health: 5%
Charge: 100%
Impedance: 37.09

So many batteries... and like $1000 I'm supposed to shell out every 4 years or so

[Smucky]

Next up, super old battery in old john deere lawn mower:

Health: 23%
Charge: 6%
Impedance: 8.59

Did this one just for fun. Also a "Continental", but not sure on the date. I remember putting the battery in this mower, and I also remember parking the mower in 2022 and not touching it since. So must be a battery from 2020 or 2021
Maybe I'll put it on the charger tomorrow

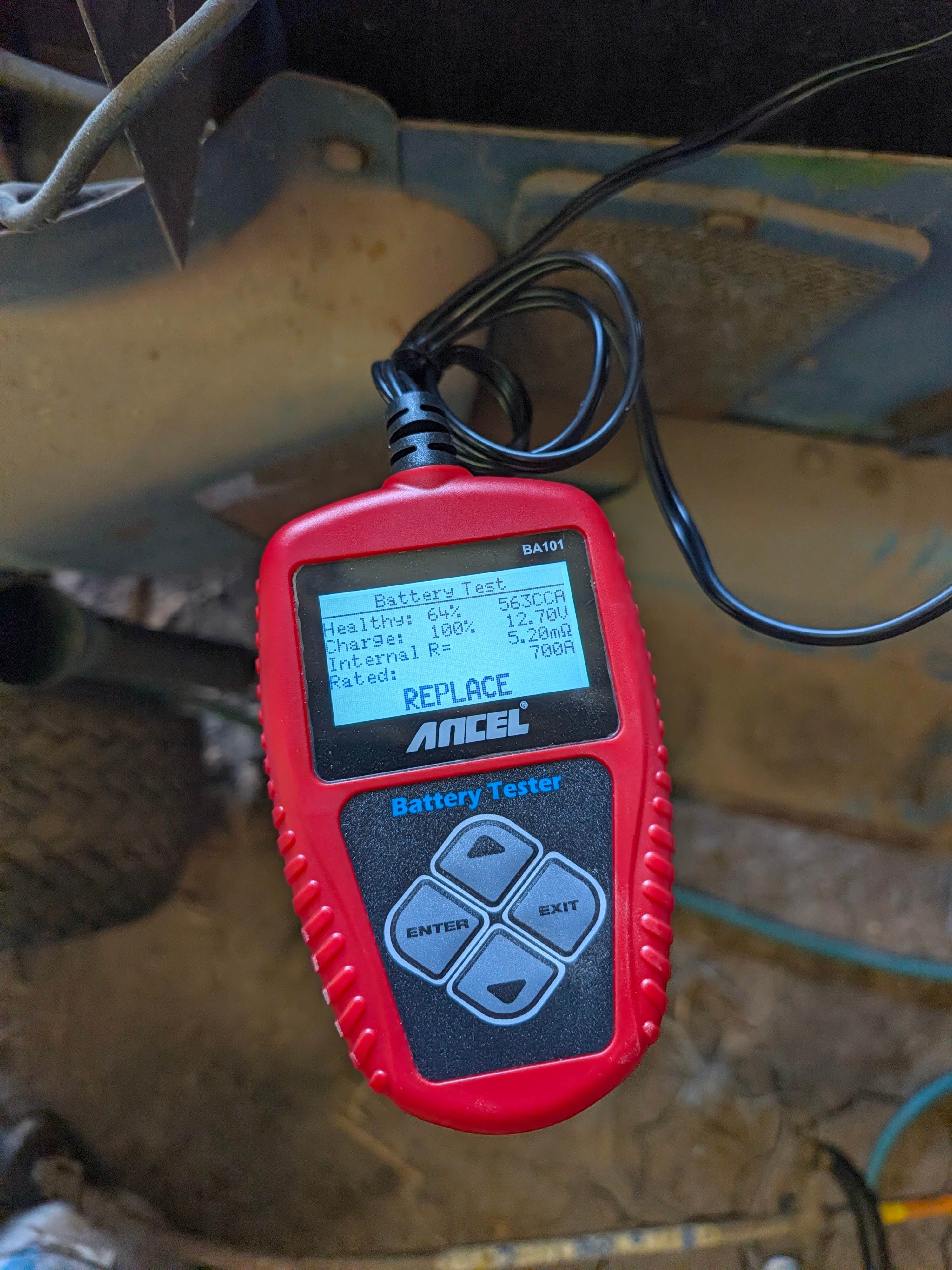

Forgot I charged that battery up and re-tested. Now reading:

Health: 64%
Charge: 100%
Impedance: 5.20

Seems good maybe I should put it into the new tractor, but then again it is like 6 years old
